The Evolution of 3D Mold Technology: An Expert's Perspective

The Rise of 3D Printing: A Game-Changer for Molding Industry

Overview of 3D Printing Technology in Molding

3D printing has revolutionized the molding industry. This technology allows for rapid prototyping and production of molds. It works by layering materials to create 3D objects from digital designs. In molding, 3D printing offers precision and flexibility.

3d molds

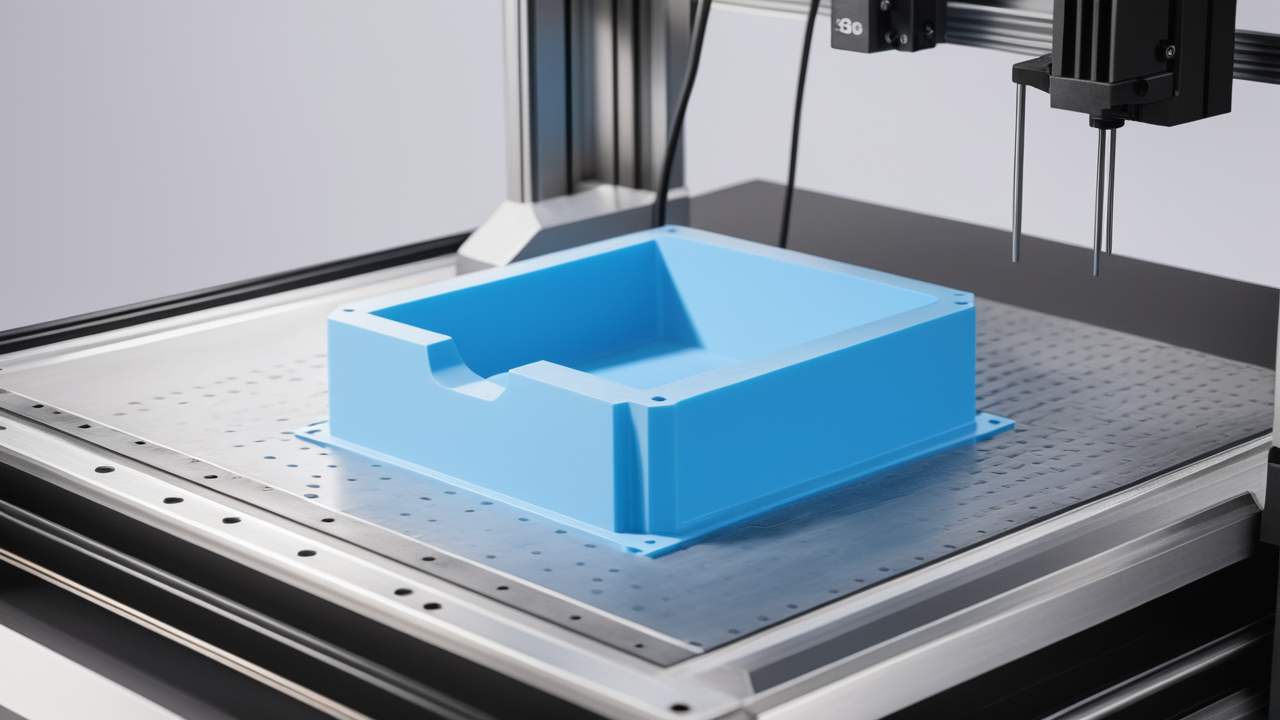

The process begins with a CAD model. This model is then sliced into layers. The printer builds the mold layer by layer. Common materials include resins and thermoplastics. These materials can withstand high temperatures and pressures.

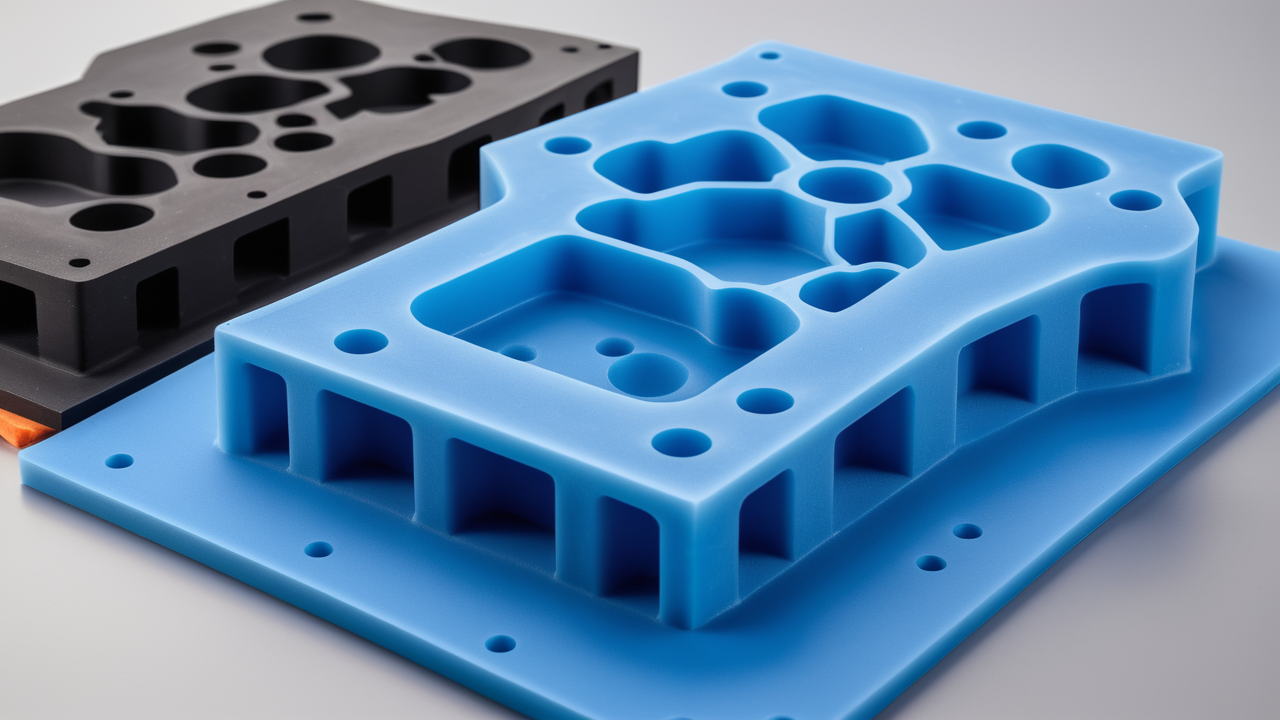

3D printed molds can be complex and intricate. They often have features that are hard to make with traditional methods. This technology has opened new doors for mold makers and designers.

Advantages of 3D Printing for Custom Molds

3D printing offers many benefits for custom mold creation. First, it reduces lead times significantly. Traditional mold making can take weeks or months. 3D printing can produce molds in days or even hours.

Customization is another key advantage. 3D printing allows for easy design changes. Designers can quickly iterate and improve mold designs. This leads to better final products.

Cost-effectiveness is also a major benefit. 3D printing reduces material waste. It also lowers labor costs. For small production runs, it's often cheaper than traditional methods.

Lastly, 3D printing enables the creation of complex geometries. These can improve cooling and part quality. Such designs are often impossible with traditional machining.

The Impact of 3D Printing on the Molding Industry Growth

3D printing has spurred significant growth in the molding industry. It has lowered barriers to entry for small businesses. Now, companies can produce small batches of custom molds cost-effectively.

This technology has also accelerated innovation. Rapid prototyping allows for faster product development. Companies can test and refine designs quickly. This leads to better products and faster time-to-market.

3D printing has expanded the range of possible products. It allows for the creation of molds with intricate details. This opens up new markets and applications.

The technology has also changed workforce needs. There's growing demand for skilled 3D printing technicians. Companies are investing in training to keep up with this evolving technology.

Innovative Materials and 3D Molding: Expanding Horizons

The Role of New Materials in 3D Printing Molds

New materials are pushing the boundaries of 3D printed molds. Traditional materials like ABS and PLA are giving way to more advanced options. These new materials offer improved durability, heat resistance, and surface finish.


High-temperature resins are gaining popularity. They can withstand the heat of injection molding processes. This makes them ideal for creating functional molds.

Metal-infused filaments are another innovation. They combine the ease of 3D printing with the strength of metal. These materials can produce molds suitable for high-volume production.

Ceramic-based materials are also emerging. They offer excellent heat resistance and dimensional stability. This makes them suitable for demanding molding applications.

How Innovative Materials Are Shaping the Future of 3D Molding

Innovative materials are expanding the possibilities of 3D molding. They're enabling the creation of more complex and durable molds. This is leading to new applications across various industries.

In the automotive sector, heat-resistant materials allow for the production of large, complex parts. The aerospace industry benefits from lightweight yet strong molds for composite parts.

The medical field is using biocompatible materials for custom implants and prosthetics. In consumer goods, new materials enable the creation of intricate textures and designs.

These materials are also improving mold longevity. This reduces production costs and increases efficiency. As a result, 3D molding is becoming viable for larger production runs.

Challenges and Opportunities in 3D Printing with Novel Materials

While novel materials offer exciting possibilities, they also present challenges. One major hurdle is the learning curve. Each new material requires specific printing parameters and post-processing techniques.

Cost can be another challenge. Many advanced materials are more expensive than traditional options. However, their improved performance often justifies the higher price.

Material consistency is crucial for quality molds. Ensuring batch-to-batch consistency can be challenging with new materials. This requires careful supplier selection and quality control.

Despite these challenges, the opportunities are significant. Novel materials enable the creation of molds with properties tailored to specific applications. This opens up new markets and improves product quality.

Research in this field is ongoing. We can expect even more advanced materials in the future. These will likely offer better performance, easier printability, and lower costs.

Best Practices in 3D Molding for Experts

Design Optimization for 3D Molding Success

Optimizing designs for 3D molding is crucial for success. Start by considering the printing orientation. This affects the strength and surface finish of the mold.


Incorporate support structures where necessary. These prevent sagging and ensure accuracy. However, design them for easy removal to minimize post-processing.

Consider the layer height and wall thickness. These affect the mold's strength and detail resolution. Adjust them based on the specific requirements of your project.

Use draft angles to facilitate part removal. This is especially important for injection molding applications. A typical draft angle is 1-2 degrees, but it may vary based on the material and part geometry.

Optimize cooling channels for injection molding. 3D printing allows for conformal cooling designs. These can significantly improve cycle times and part quality.

Post-printing Finishing Techniques for 3D Molds

Post-printing finishing is crucial for 3D printed molds. Start with support removal. Use specialized tools to avoid damaging the mold surface.

Sanding is often necessary to achieve a smooth surface. Start with coarse grit and progressively move to finer grits. Be careful not to alter critical dimensions.

For high-gloss finishes, consider vapor smoothing. This technique uses solvent vapor to smooth the surface. It works well with ABS and some other plastics.

Heat treatment can improve the mold's strength and heat resistance. The specific process depends on the material used. Follow manufacturer guidelines closely.

Coating or plating can enhance durability and release properties. Options include nickel plating and PTFE coating. Choose based on your specific application requirements.

Evaluating the Quality of 3D Printed Molds

Quality evaluation is critical for 3D printed molds. Start with visual inspection. Look for defects like layer lines, warping, or incomplete areas.

Dimensional accuracy is crucial. Use precision measurement tools to verify key dimensions. Compare these to the original CAD model.

Surface roughness affects part quality and release. Use a profilometer to measure and quantify surface smoothness.

For injection molds, perform a mold flow analysis. This simulates the injection process and can reveal potential issues.

Test the mold under actual operating conditions. This reveals any weaknesses or design flaws. It also helps estimate the mold's lifespan.

Monitor part quality over multiple cycles. This helps identify any degradation in mold performance over time. Adjust your processes as needed based on these observations.
