The Expert's Approach to Creating Professional-Grade Silicone Molds

Understanding the Silicone Molding Process

The Chemistry Behind Silicone Molds

Silicone molds are made from a special type of polymer. This material is flexible and heat-resistant. It's perfect for creating detailed molds. The main component is silicone rubber. This is mixed with a catalyst to start the curing process.

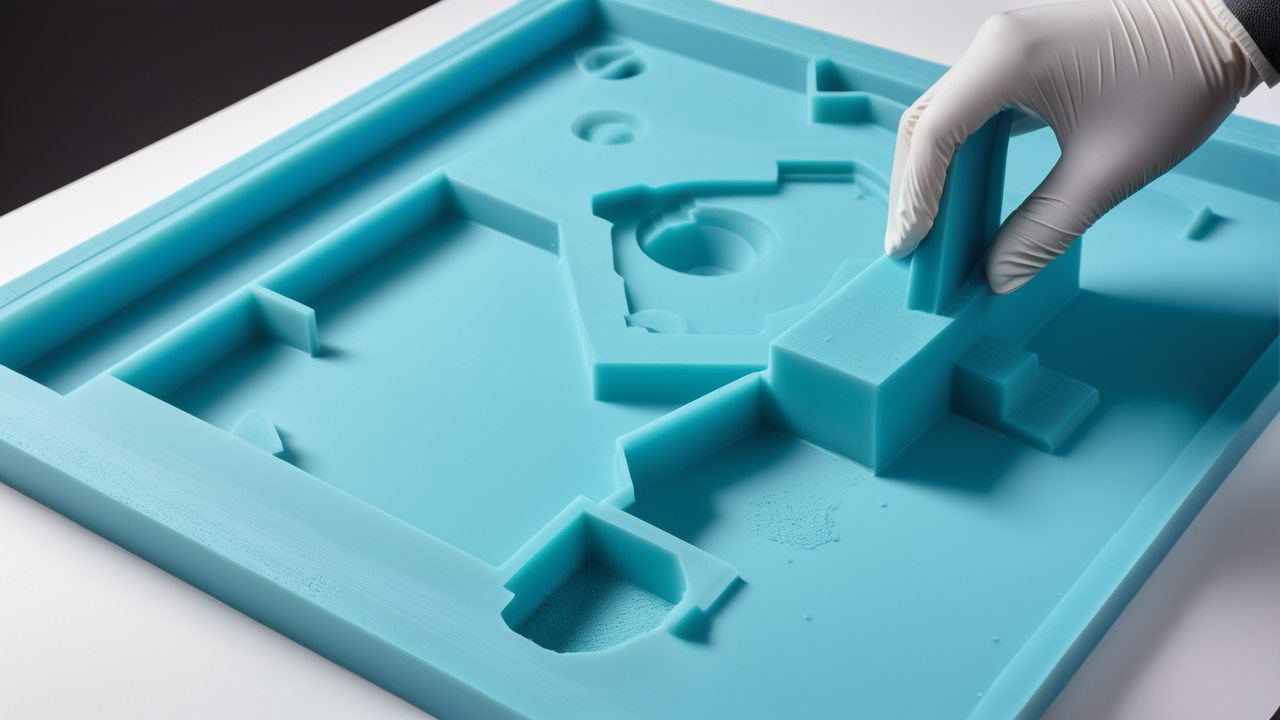

custom silicone mold

The chemistry is complex, but the basics are simple. When mixed, the silicone and catalyst form long chains. These chains link together to create a solid, yet flexible material. This process is called polymerization.

Different types of silicone can be used. Each has its own properties. Some are better for food-safe molds. Others are ideal for high-temperature applications. The choice depends on the intended use of the mold.

Tools and Materials Needed for Silicone Molding

To create professional-grade silicone molds, you'll need specific tools and materials. Here's a list of essentials:

  • Silicone rubber (RTV-2 is common for custom molds)
  • Catalyst or hardener
  • Mixing containers (plastic or silicone)
  • Stirring sticks
  • Mold release agent
  • Original object to be molded
  • Clay for creating a barrier
  • Gloves and safety glasses
  • Scale for accurate measurements
  • Vacuum chamber (for removing air bubbles)

Optional tools include a heat gun for removing surface bubbles and a pressure pot for denser molds. The quality of these tools can affect the final product. Invest in good equipment for the best results.

Steps to Create a Custom Silicone Mold

Creating a custom silicone mold involves several key steps:

  1. Prepare the original object. Clean it and apply mold release if needed.
  2. Create a containment area. Use clay or a box to hold the silicone.
  3. Mix the silicone. Follow the manufacturer's instructions carefully.
  4. Pour the silicone. Do this slowly to minimize air bubbles.
  5. Allow the silicone to cure. This can take 24 hours or more.
  6. Remove the mold. Carefully separate it from the original object.

Each step requires attention to detail. Proper mixing is crucial. Air bubbles can ruin a mold. Many experts use a vacuum chamber to remove bubbles. This ensures a smooth, accurate mold.

Curing time and temperature are also important. Follow the product guidelines closely. Rushing the process can lead to weak or distorted molds.

Advanced Techniques in Silicone Molding

Incorporating Complex Geometries

Creating molds for complex shapes requires advanced techniques. One method is using a multi-part mold. This allows for easier removal of intricate objects. Here's how it works:

unique silicone molds
  1. Divide the object into sections. Each section should be easy to remove.
  2. Create molds for each section separately.
  3. Use registration keys to ensure proper alignment.
  4. Assemble the parts to create the final mold.

Another technique is using flexible cores. These help create hollow sections or undercuts. Silicone is ideal for this. It can bend and flex during demolding.

3D printing is also useful for complex geometries. Print a model, then create a silicone mold from it. This combines digital design with traditional molding techniques.

Ensuring Longevity and Durability of Molds

To make silicone molds last longer, consider these tips:

  • Use high-quality silicone. It may cost more, but it lasts longer.
  • Store molds properly. Keep them in a cool, dry place.
  • Clean molds after each use. This prevents buildup of residue.
  • Use mold release agents. This reduces wear on the mold surface.
  • Avoid overheating. High temperatures can degrade silicone over time.

Regular inspection is key. Look for signs of wear or damage. Small tears can be repaired with fresh silicone. Larger damage may require replacing the mold.

The number of uses varies. Some molds can be used hundreds of times. Others may only last for a few castings. It depends on the material and how it's used.

Troubleshooting Common Issues in Silicone Molding

Even experts face challenges in silicone molding. Here are some common issues and solutions:

  1. Air bubbles: Use a vacuum chamber or vibration table to remove them.
  2. Incomplete curing: Check mixing ratios and temperature. Ensure proper catalyst distribution.
  3. Tearing during demolding: Use more mold release or adjust the mold design.
  4. Shrinkage: Account for it in your design or use a low-shrinkage silicone.
  5. Sticking: Increase the amount of mold release or try a different type.

Experimentation is often necessary. Keep detailed notes on each attempt. This helps in refining the process over time. Don't be afraid to ask for advice from other molding experts.

Applications of Custom Silicone Molds in Various Industries

The Role of Silicone Molds in the Food Industry

Silicone molds have revolutionized food production. They're used for everything from chocolates to ice cubes. Here's why they're popular:

make a silicone mold
  • Food-safe material: Silicone doesn't react with food.
  • Easy to clean: Many are dishwasher safe.
  • Flexible: Makes removing delicate items easier.
  • Heat resistant: Can go from freezer to oven.

Bakers use silicone molds for unique cake shapes. Chocolatiers create intricate designs. Even large food manufacturers use them for mass production. The possibilities are endless.

Custom molds allow for brand-specific shapes. This is great for marketing. Imagine chocolates in the shape of your company logo. Silicone molds make this possible and cost-effective.

Creative Uses in the Healthcare Sector

In healthcare, silicone molds serve many purposes. They're used in both research and patient care. Some applications include:

  • Prosthetics: Creating custom-fit prosthetic limbs.
  • Dental work: Making impressions for crowns and implants.
  • Medical training: Producing realistic models for practice.
  • Orthotics: Crafting custom insoles and braces.

Silicone's biocompatibility makes it ideal for these uses. It can be sterilized easily. This is crucial in medical settings. The ability to create detailed, custom shapes is also valuable.

Researchers use silicone molds to create tissue scaffolds. These help in growing new organs. It's an exciting area of medical advancement.

Innovative Applications in Home Decor and Design

Home decor benefits greatly from silicone molds. They allow for unique, custom designs. Here are some creative uses:

  • Concrete planters: Create modern, geometric shapes.
  • Wall tiles: Design custom patterns for backsplashes.
  • Candle making: Craft unique candle shapes and holders.
  • Soap making: Produce artisanal soaps with intricate designs.

DIY enthusiasts love silicone molds. They're reusable and easy to work with. This makes experimenting with designs more accessible.

Designers use silicone molds to prototype new products. It's a quick way to test shapes and forms. This speeds up the design process significantly.

Custom silicone molds open up a world of possibilities. From food to healthcare to home decor, their applications are vast. With the right techniques, anyone can create professional-grade molds.
